Pharmaceutical Excipient Nitrogen Analyzer 0.1-200mg Nitrogen Solid 0.20 ~ 2.00g ChP 0704

Τόπος καταγωγής Κίνα
Μάρκα Shandong Shengtai Instrument Co.,Ltd
Πιστοποίηση ChP 0731 ChP 0704
Αριθμό μοντέλου ST-18BS
Ποσότητα παραγγελίας min 1
Συσκευασία λεπτομέρειες ξύλινο τελάρο
Χρόνος παράδοσης 7-15 εργάσιμες ημέρες
Όροι πληρωμής T/T
Δυνατότητα προσφοράς 10000 σετ / έτος
Λεπτομέρειες
Σειρά προσδιορισμού περιεκτικότητα σε 0.05-90% άζωτο (άζωτο 0.1-200mg) Στερεό δείγμα 0,20 ~ 2,00 γρ
Ημιστερεό δείγμα 2,00 ~ 5,00 γρ Υγρό δείγμα 10,00 ~ 25,00 ml
Τάση εργασίας AC 220V 50Hz Ακρίβεια Σχετική διαφορά 1%
Επισημαίνω

Pharmaceutical nitrogen analyzer 0.1-200mg

,

Nitrogen solid analyzer ChP 0704

,

Pharmaceutical testing instrument 0.20-2.00g

Αφήστε ένα μήνυμα
Περιγραφή προϊόντων

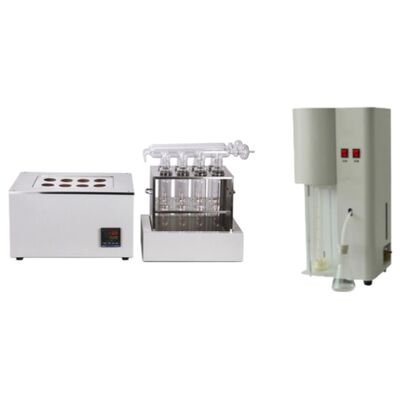

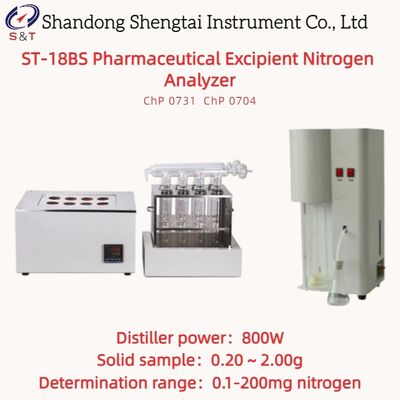

ST-18BS Pharmaceutical Excipient Nitrogen Analyzer

ST-18BS=ST-14B+ST-08C nitrogen determination instrument for pharmaceutical excipients is mainly composed of electric heating digestion furnace and distiller.

ST-18BS pharmaceutical excipients nitrogen determination instrument (also known as pharmaceutical excipients protein determination instrument) is a series of products designed by our company according to the principle of Kjeldahl nitrogen determination method, and conforms to the first method of protein content determination in 2020 Chinese Pharmacopoeia 0731 Kjeldahl nitrogen determination method and the third method of 0704 nitrogen determination method nitrogen determination instrument method.

Technical parameters:

Determination of varieties grain, food, dairy products, beverages, feed, soil, water, pharmaceutical excipients, precipitates and chemicals, etc
Determination range

nitrogen content 0.05-90%

(0.1-200mg nitrogen)

Solid sample 0.20 ~ 2.00g
Semisolid sample 2.00 ~ 5.00g
Liquid sample 10.00 ~ 25.00ml
Recovery rate ≥ 99% (relative error, including digestion process)
Repetition rate relative standard deviation ≤± 0.5%
Working voltage AC 220V 50Hz
Accuracy relative difference 1%
8-hole digital display digestion furnace power 1200W
Distiller power 800W
Weight 25KG
Distiller distilled water enters the distiller

Pharmaceutical Excipient Nitrogen Analyzer 0.1-200mg Nitrogen Solid 0.20 ~ 2.00g ChP 0704 0

Note: The appearance pictures dimensions, volume and weight of the instrument are for reference only. If there are any updates to the instrument, they may be slight changes without prior notice.



ST-08C Digester

Product features:

● Quartz infrared heating tube; Fast heating time and high efficiency

● The furnace hole temperature is continuously adjustable, with fast temperature rise speed and wide application range

● Small temperature difference between holes, good sample digestion consistency and high thermal efficiency, which is conducive to sample digestion

Parameter index:

Number of heating holes 8
Digestion tube length 300mm
Design temperature RT ~ 500 ℃
Temperature control mode intelligent PID control
Temperature control accuracy ± 1 ℃
Temperature rise rate ≈ 30 ℃ /min
Power 2KW
Current 9A
Sealing material polytetrafluoroethylene

Note: The appearance pictures, dimensions, volume and weight of the instrument are for reference only. If there are any updates to the instrument, they may be slight changes without prior notice.

Pharmaceutical Excipient Nitrogen Analyzer 0.1-200mg Nitrogen Solid 0.20 ~ 2.00g ChP 0704 1

Packing list

Number Name Quantity Unit Note
1 Fixed nitrogen distiller 1 Unit
2 Digestion furnace 1 Unit
3 Test tube rack (8 holes) 1 Piece
4 Exhaust collection pipe (glass) 2 Piece
5 Digestive tract (glass) 8 Piece
6 Exhaust three-way (tetrafluoroethylene) 1 Piece
7 Power cord 2 Strip 10A
8 Fuse tube 1 Piece 5A
9 Rubber sealing ring 8 Piece
10 6 * 11 rubber tube 1 Metre
11 Instruction Manual 1 Copy
12 Certificate of Conformity Warranty Card 1 Copy



Shandong Shengtai Instrument Co., Ltd. provides the following quality assurance for the instruments sold to you:

----The instrument materials provided shall be brand new, in line with national quality standards and goods with manufacturer's certificate of conformity;

----The materials and main components provided comply with the technical requirements specified in the technical data;

----The warranty period of the whole equipment is one year (excluding normal wear of wearing parts).

----In case of any instrument quality problem within the warranty period, we shall be responsible for free maintenance. If the equipment fails due to the user's responsibility, we shall be responsible for the repair and reasonable charge.

----The equipment lifetime preferential supply spare parts, complete machine lifetime maintenance repair.

----After expiration of the warranty period, if the user needs maintenance and technical services, we will only charge the cost.
