12 Hole Brake Fluid Low Temp Flow Tester Metal Bath GB/T12981

Τόπος καταγωγής Κίνα
Μάρκα Shandong Shengtai Instrument Co., Ltd.
Πιστοποίηση SH12981B
Αριθμό μοντέλου SH12981B
Ποσότητα παραγγελίας min 1
Συσκευασία λεπτομέρειες Ξύλινη Θήκη
Χρόνος παράδοσης 7-15 εργάσιμες ημέρες
Όροι πληρωμής T/T
Δυνατότητα προσφοράς 10000 σύνολα/έτος

Με ελάτε σε επαφή με δωρεάν δείγματα και δελτία.

WhatsApp:0086 18588475571

wechat: 0086 18588475571

Skype: sales10@aixton.com

Εάν έχετε οποιαδήποτε ανησυχία, παρέχουμε τη 24ωρη σε απευθείας σύνδεση βοήθεια.

x
Λεπτομέρειες
Ρυθμισμός θερμοκρασίας κρύου μπάνιου θερμοκρασία δωματίου -60 °C Μέσο ψύξης Λουτρό μετάλλων
Ακρίβεια προβολής ± 1 °C Μέγεθος οργάνου 670 * 515 * 520 χιλ.
Σύστημα ψύξης Συμπίεση καταρράκτη Εργαστήριο ρεύματος AC220V ± 10% 50Hz
Επισημαίνω

12 hole brake fluid tester

,

low temp flow tester metal bath

,

GB/T12981 brake fluid equipment

Αφήστε ένα μήνυμα
Περιγραφή προϊόντων
12 Holes Brake Fluid Low Temperature Flow Tester Metal Bath 125ml Test Tube GB/T12981
Product Attributes
Attribute Value
Cold bath temp control room temp ~ -60 ℃
Refrigeration medium metal bath
Display accuracy ± 1 ℃
Instrument size 670 * 515 * 520 mm
Refrigeration system cascade compressor
Working power supply AC220V ± 10% 50Hz
Product Description

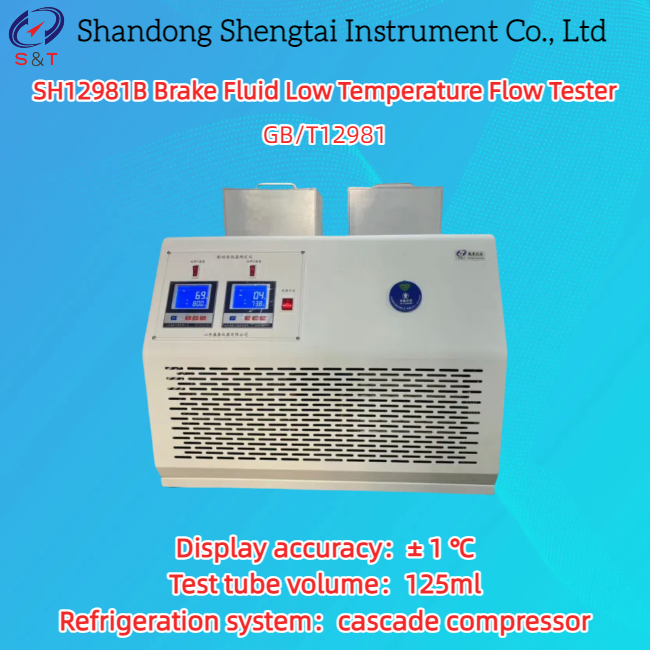

SH12981B Brake Fluid Low Temperature Flow Tester

The SH12981B brake fluid low-temperature flowability tester is designed and manufactured strictly in accordance with Appendix G standard of GB/T12981, fully meeting the requirements for determining the low-temperature flowability, water solubility, and compatibility of brake fluid.

Performance Characteristics
  • The instrument adopts compressor refrigeration, which has fast cooling speed and long service life.
  • The display mode adopts a small LCD display, which has good temperature control stability.
  • Equipped with low-temperature flowability test tubes for low-temperature flowability experiments, and equipped with centrifuge tubes for low-temperature solubility and compatibility experiments.
Main Technical Specifications and Parameters
Working power supply AC220V ± 10% 50Hz
Cold bath temp control room temp ~ -60 ℃
Refrigeration medium metal bath
Number of cold bath holes 12 holes
Display accuracy ± 1 ℃
Refrigeration system cascade compressor
Test tube volume 125ml
Environmental temperature ≤ 30 ℃
Relative humidity ≤ 85%
Instrument size 670 * 515 * 520 mm
Instrument weight 72kg
Packaging size 760 * 560 * 610 mm
Packaging weight 85kg wooden crate

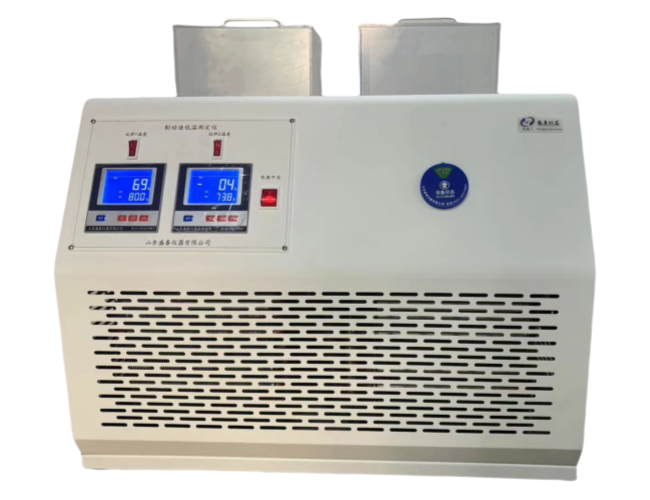

12 Hole Brake Fluid Low Temp Flow Tester Metal Bath GB/T12981 0
Note: The appearance pictures, dimensions, volume, and weight of the instrument are for reference only. If there are any updates to the instrument, there may be slight changes without prior notice.
Quality Assurance

Shandong Shengtai Instrument Co., Ltd. provides the following quality assurance for the instruments sold to you:

  • The provided instrument materials are brand new, meet national quality standards, and have a manufacturer's certificate of conformity;
  • The materials and main components provided meet the technical requirements specified in the technical documentation;
  • The overall quality assurance period of the equipment is one year (excluding normal wear and tear of vulnerable parts).
  • We are responsible for free maintenance of any instrument quality issues that occur during the warranty period. Due to equipment malfunction caused by the user's responsibility, we are responsible for repairing and charging reasonable fees.
  • Lifetime discounted supply of parts for equipment, and lifetime maintenance and repair of the entire machine.
  • After the expiration of the warranty period, if the user needs maintenance and technical services, we will only charge a cost fee.
Packing List
Number Name Quantity Unit Note
1 Host 1 Unit
2 Glass tube 10 Set
3 Power line 1 Strip
4 Fuse tube 1 Piece
5 Operation instructions 1 Copy
6 Packing list 1 Copy
7 Certificate of Conformity Warranty Card 1 Copy
